Find Your Bubble Cage: Support Style, Layflat Range, Dimensions, Weights
Choose a Support Style
- Radial Roller Actuation
- Guide elements with single roller (x40 on standard cage)
- Optimized for radial support and excellent price to performance ratio
- Open / Close Ratio: ≈ 3.5:1

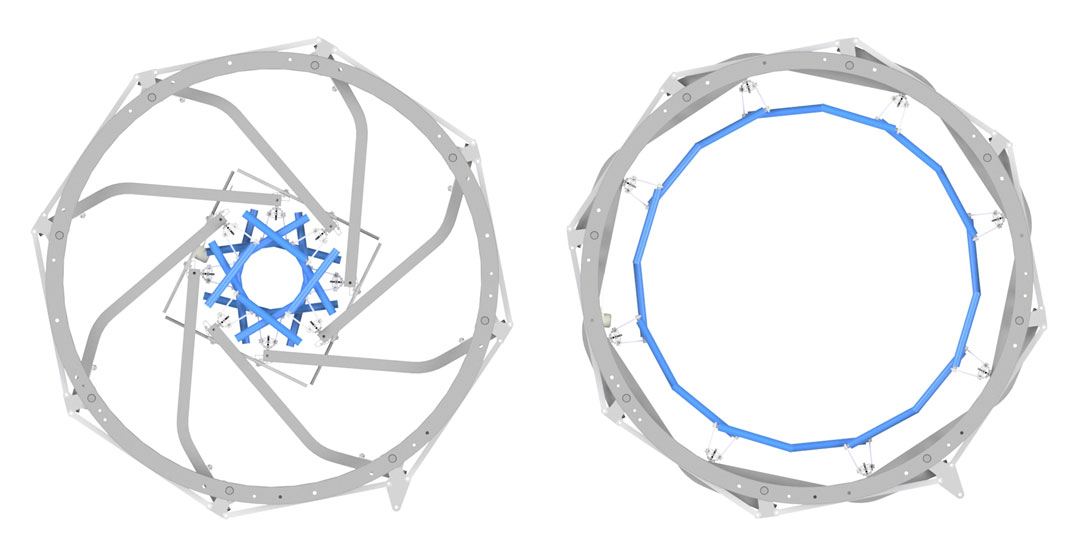

- Radial Roller Actuation

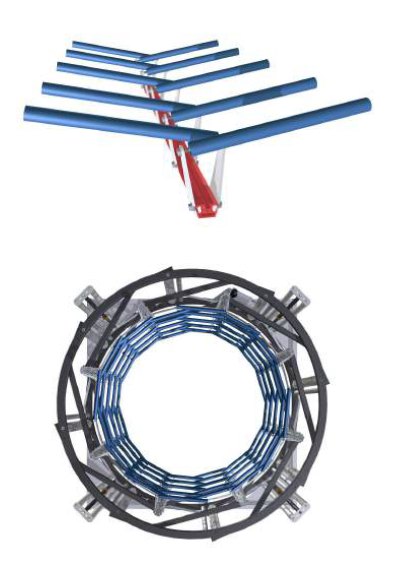

- Guide elements with double rollers in "V" configuration (x80 on standard cage)
- Optimized for max bubble support and largest layflat support range
- Open / Close Ratio: ≈ 4:1 - 5:1
S-Version Bubble Cage Supported Layflat Range
*3% Film Shrinkage from cooling is accounted for in the below charts
§ Bubble Cages can be configured 4 – 6 levels of rollers. 5 levels is standard, 4 levels available for short towers, and 6 levels for high towers
† Cages are not certified to lift weight without adding the Certified Lift Option
Supported Layflat Range*
Rollers per Level §
Certified Lift Option †
V-Version Bubble Cage Supported Layflat Range
*3% Film Shrinkage from cooling is accounted for in the below charts
§ Bubble Cages can be configured 4 – 6 levels of rollers. 5 levels is standard, 4 levels available for short towers, and 6 levels for high towers
† Cages are not certified to lift weight without adding the Certified Lift Option
Supported Layflat Range*
Rollers per Level §
Certified Lift Option †

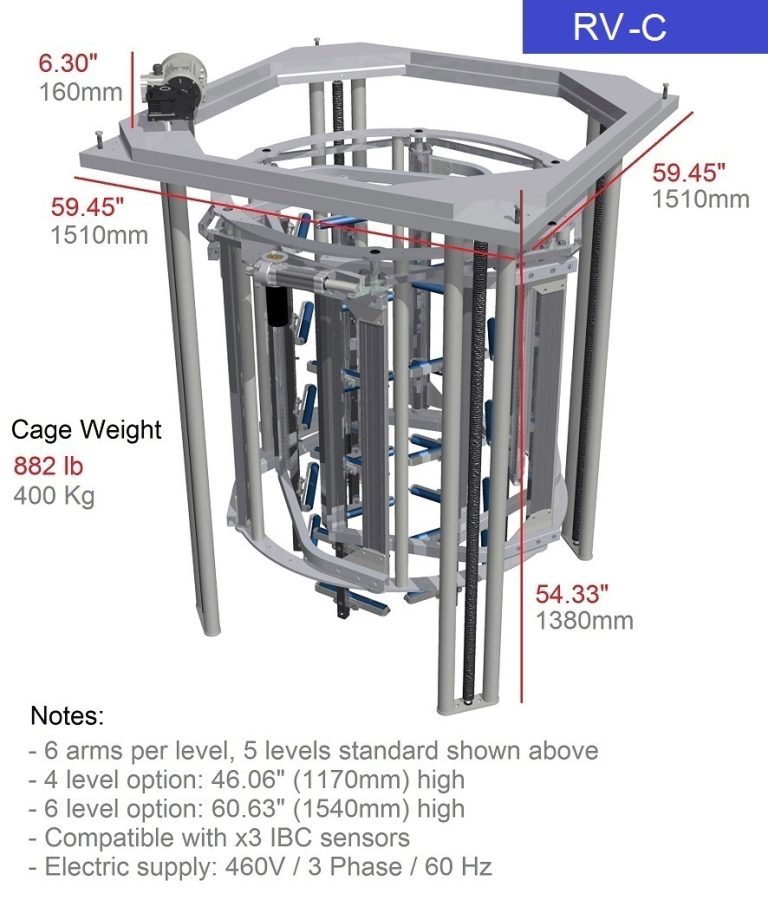

Cage Dimensions / Weights
Installation Dimensions – Check to see if the cage will fit in your blown film tower. Detailed drawings available upon request. Standard 5 level cage drawings are shown. Contact Us for further information.
